Pressure Gauge

PDS-01 Thread Connection Diaphragm Gauge

Overview

Sanitary pressure gauge are specially designed to meet the demanding sanitary requirements of food , dairy , beverage , pharmaceutical , and biotech applications

Diaphragm Pressure Gauge

สำหรับงานด้านอุตสาหกรรมอาหาร ,อุตสหกรรมเคมี และงานที่ต้องวัดความดันสารที่มีความเข้มข้น สารที่มีการกัดกร่อนต่อ pressure gauge สามารถถอดล้าง เพื่อทำความสะอาดได้

PS-01 Tri-clamp Connection Sanitary Gauge

Overview

Diaphragm chemical seal pressure gauges Designed for applications such as oil refineries, chemical plants, cleaned by removing the lower housing and many other industrial applications, to measure low pressure in a corrosive environment can be

Sanitary Pressure gauge

สำหรับงานด้านอุตสาหกรรมอาหาร ,ด้านเวชภัณฑ์ยา , และ งานที่ต้องวัดความดันสารที่มีความเข้มข้น สารที่มีการกัดกร่อนต่อ pressure gauge สารทีมีความหนืด สามารถถอดล้าง เพื่อทำความสะอาดได้

Type : PS-01 ( Tri-clamp Connection Sanitary Gauge )
Application:Sanitary pressure gauge are specially designed to meet the demanding sanitary requirements of food , dairy , beverage , pharmaceutical , and biotech applications
Dial Size: 2 1/2″ , 4″
Pressure Rnge: 1 bar – 25 bar
Socket: 316SS bottom
Diaphragm: SS316L
Housing: AISI 316 stainless steel
Connection: 1 1/2″ , 2″ tri-clamp connection
Window ( lens ): Polycarbonate lens , tempered glass available
Accuracy: +/- 1.6 % full scale
Liquid Filled: glycerin

PS-02 Tread Connection Sanitary Gauge

Overview

Sanitary pressure gauge are specially designed to meet the demanding sanitary requirements of food , dairy , beverage , pharmaceutical , and biotech applications

Sanitary Pressure gauge

สำหรับงานด้านอุตสาหกรรมอาหาร ,ด้านเวชภัณฑ์ยา , และ งานที่ต้องวัดความดันสารที่มีความเข้มข้น สารที่มีการกัดกร่อนต่อ pressure gauge สารทีมีความหนืด สามารถถอดล้าง เพื่อทำความสะอาดได้

Type :  PS-02 ( Tread Connection Sanitary Gauge )
Application: Sanitary pressure gauge are specially designed to meet the demanding sanitary requirements of food , dairy , beverage , pharmaceutical , and biotech applications
Dial Size:  2 1/2″ , 4″
Pressure Range:  1 bar – 25 bar
Socket:  316SS bottom
Diaphragm:  SS316L
Housing:  AISI 316 stainless steel
Connection:  1 1/2″ , 2″ union connection
Window ( lens ):  Polycarbonate lens , tempered glass available
Accuracy:  +/- 1.6 % full scale
Liquid Filled:  glycerin

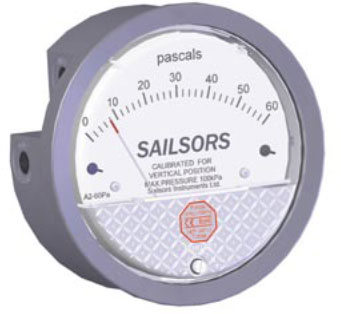

A2 Differential Pressure Gauge

Features

Magnet-helix indicating mechanism ideal for low DP measurement A wide selection of ranges from 0Pa to 30Pa at up to 30KPa Accuracy 2% of FS Inertia-free, drift-free pointer indication OEM solutions available

Specification

Service: Air and non-combustible, compatible gases
Ranges: See Range Selection Chart
Accuracy: ±2% of full span at 21℃ (±3% on A2-0.50IN, A2/Z-0.5IN, A2-10MM,
Ambient Temperature: -7 ~ 60℃
Pressure Limit:-68 ~ 100KPa
Overpressure: Relief plug opens at approximately 15Psig (100KPa)
Process Connections: 1/8″ female NPT duplicate high and low pressure taps: one pair side and one pair back
Case and Bezel Material: Die cast aluminum
Weight:460g
Dial Size: 4″ Diameter
Mounting Position: Vertical
Standard Accessories: Two 1/8″ NPT plugs for duplicate pressure taps, two 1/8″ pipe thread to rubber tubing adapter, and three flush mounting adapters with screws

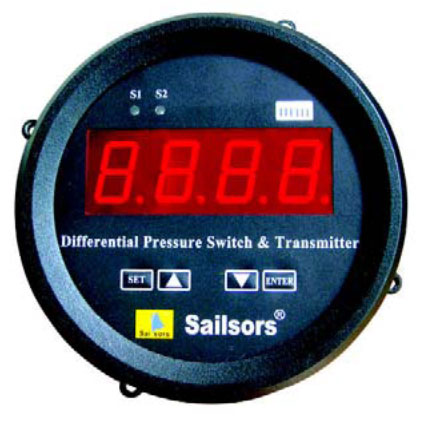

Series A3 Ultra-thin Digital DP Switch/ Gauge/Transmitter

Features

• Excellent for differential, negative, gauge, and absolute pressure measurement
• Ranges from 60Pa to 42MPa
• Combining the functions of switch, gauge and transmitter
• Accuracy of 0.5% FS, without dead band
• Ranges can be reset in the field through the reset buttons

Specification

Media Compatibility:  Differential pressure: Air and non-corrosive gases
Gauge pressure/ Absolute pressure: non-corrosive gases / liquid
Accuracy:  0.5% of full span (including Linearity, Hysteresis and Repeatability)
Output Signal:  4-20mA, 2-wire
Power Supply: 120ADC, 220ADC; 50/60Hz
Electrical Rating of Switch:  10A@120VAC, 6A@240VAC, 60Hz
Electrical Connections:  Screw terminals
Process Connections:
Differential Pressure:
Gauge pressure/ Absolute pressure:
Material:  ABS housing; Brass or 316SS process connections
Damping:  1-30s adjustable
Operating temperature: -10~50°C
Range Turn Down:  3:01
Set Point Adjustment:  Reset buttons on face
Size:  4” (101.60mm) dial face

63B Liquid Filled Pressure Gauge

Overview

• Liquid filled pressure gauge are designed for a wide range of application on pump, compressors, hydraulic system, gas, water and petrochemical processing equipment.
• Pressure gauge can be liquid filled in the field to dampen the gauge movement and pointer.
• Pressure gauge are more accuracy and hevyduty.

เกจวัดแรงดัน เครื่องมือวัดความดันสำหรับ อากาศ ของเหลว หรือ ก๊าซ สามารถเติมของเหลวได้ในตัวเพื่อป้องกันความเสียหาย ใช้ในงานอุตสาหกรรม ปิโตรเลียม เคมี และ น้ำ

Specification

63B Case / ตัวเรือน SIZE / หน้าปัด Connection / ข้อต่อ Rang / ความดัน
Liquid filled  Stainless 304 2-1/2″ ออกล่าง 0-400 bar
Pressure Gauge  ทองเหลือง
เกจบรรจุของเหลว 1/4″ 0-5800 psi


63S Liquid Filled Pressure Gauge

Overview

• Liquid filled pressure gauge are designed for a wide range of application on food , chemical steam and petrochemical processing equipment.
• Pressure gauge can be liquid filled in the field to dampen the gauge movement and pointer
• Pressure gauge are more accuracy and hevyduty.

เกจวัดแรงดัน เครื่องมือวัดความดันสำหรับ อาหาร เคมี และ ปิโตรเลียม สามารถเติมของเหลวได้ในตัวเพื่อป้องกันความเสียหาย ใช้ในงานอาหาร เคมี และ ปิโตรเลียม

Specification

63B Case / ตัวเรือน SIZE / หน้าปัด Connection / ข้อต่อ Range / ความดัน
Liquid filled  Stainless 304 2-1/2″ ออกล่าง 0-400 bar
Pressure Gauge  Stainless 316
เกจบรรจุของเหลว 1/4″ 0-5800 psi

100B Liquid Filled Pressure Gauge

Overview

• Liquid filled pressure gauge are designed for a wide range of application on pump , hydraulic system, gas , compressors petrochemical and water processing equipment.
• Pressure gauge can be liquid filled in the field to dampen the gauge movement and pointer
• Pressure gauge are more accuracy and hevyduty.

เกจวัดแรงดัน เครื่องมือวัดความดันสำหรับ อากาศ ของเหลว หรือ ก๊าซ สามารถเติมของเหลวได้ในตัวเพื่อป้องกันความเสียหาย ใช้ในงานอุตสาหกรรม ปิโตรเลียม เคมี และ น้ำ

Specification

100B Case / ตัวเรือน SIZE / หน้าปัด Connection / ข้อต่อ Range / ความดัน
Liquid filled  Stainless 304 4″ ออกล่าง 0-400 bar
Pressure Gauge  ทองเหลือง
เกจบรรจุของเหลว 1/2″ 0-5800 psi

100S Liquid Filled Pressure Gauge

Overview

• Liquid filled pressure gauge are designed for a wide range of application on food steam , chemical and petrochemical processing equipment .
• Pressure gauge can be liquid filled in the field to dampen the gauge movement and pointer
• Pressure gauge are more accuracy and hevyduty.|
• Special dials: ranges different from standred, or custom artwork, avialable on request.

เกจวัดแรงดัน เครื่องมือวัดความดันสำหรับ อาหาร เคมี และ ปิโตรเลียม สามารถเติมของเหลวได้ในตัวเพื่อป้องกันความเสียหาย ใช้ในงานอาหาร เคมี และ น้ำ

Specification

100S Case / ตัวเรือน SIZE / หน้าปัด Connection / ข้อต่อ Range / ความดัน
Liquid filled  Stainless 304 4″ ออกล่าง 0-400 bar
Pressure Gauge  Stainless 306
เกจบรรจุของเหลว 1/2″ 0-5800 psi

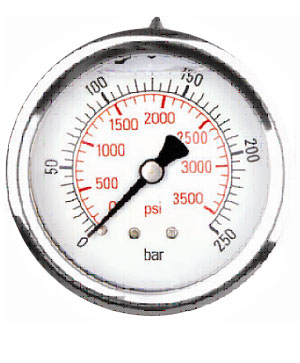

63,100 BB Liquid Filled Pressure Gauge

Overview

• MGAGE liquid filled pressure gauge are designed for a wide range of application on pump , compressors , hydraulic system, gas ,
• water and petrochemical processing equipment.
• MGAGE pressure gauge can be liquid filled in the field to dampen the gauge movement and pointer
• MGAGE pressure gauge are more accuracy and hevyduty.
• Connection type: center back
• Select option : flang or no flange.

MGAGE เกจวัดแรงดัน เครื่องมือวัดความดันสำหรับ อากาศ ของเหลว หรือ ก๊าซ สามารถเติมของเหลวได้ในตัวเพื่อป้องกันความเสียหาย ใช้ในงานอุตสาหกรรม ปิโตรเลียม เคมี และ น้ำ

Specification

63BB-100BB Case / ตัวเรือน SIZE / หน้าปัด Connection / ข้อต่อ Range / ความดัน
Liquid filled   Stainless 304 2-1/2″ ออกหลังมีปีก,ไม่มีปีก 0-400 bar
Pressure Gauge  4″ ทองเหลือง
เกจบรรจุของเหลว 1/4″ , 1/2” 0-5800 psi

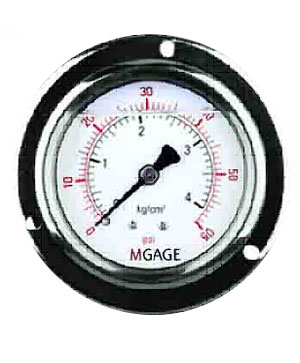

63,100 SB Liquid Filled Pressure Gauge

Overview

• MGAGE liquid filled pressure gauge are designed for a wide range of application on food , steam chemical and petrochemical processing equipment.
• MGAGE pressure gauge can be liquid filled in the field to dampen the gauge movement and pointer
• MGAGE pressure gauge are more accuracy and hevyduty.
• Connection type: center back
• select option : flang or no flange.

MGAGE เกจวัดแรงดัน เครื่องมือวัดความดันสำหรับ อาหาร เคมี และ ปิโตรเลียม สามารถเติมของเหลวได้ในตัวเพื่อป้องกันความเสียหาย ใช้ในงานอาหาร เคมี และ น้ำ

Specification

63SS-100SS Case / ตัวเรือน SIZE / หน้าปัด Connection / ข้อต่อ Range / ความดัน
Liquid filled     Stainless 304 2-1/2” ออกหลังมีปีก 0-400 bar
ไม่มีปีก
Pressure Gauge  4″ Stainless 316
เกจบรรจุของเหลว 1/4″ , 1/2″ 0-5800 psi
